Combined Heat & Power Plant - Germany

Design of the entire electrical appliances for the combined heat and power plant

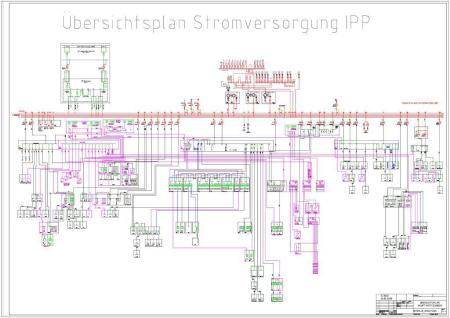

Max-Planck-Institute for Plasma Physics (IPP), located in Garching adjacent to Munich, has intended establishment of a combined heat and power plant with an absorption cooling machine to cool down its data processing centre. In this regard, Regierungsbaumeister Schlegel GmbH & Co. KG is working on the relevant electrical engineering design. Hereby, about 2 MW electrical power is coupled out and fed to the existing 10 kV network. The IPP consists of about 60 buildings with altogether 120 transformer- and 36 electric distribution stations.

Project/technical data:

Combustion capacity 4.8 MW
Electric nominal capacity 2.0 MW
Existing plant network 10 kV
